MEAREG’s Ultrasonic sensor technology, meaSONIC®, provides a huge cost savings compared to Beta radiometry or X-Ray (gamma radiometry) basis weight measurement technologies.
MEAREG Ultrasonic
Basis Weight Measurement
MEAREG’s Ultrasonic sensor technology, meaSONIC®, provides a huge cost savings compared to Beta radiometry or X-Ray basis weight measurement technologies.
Our Product:

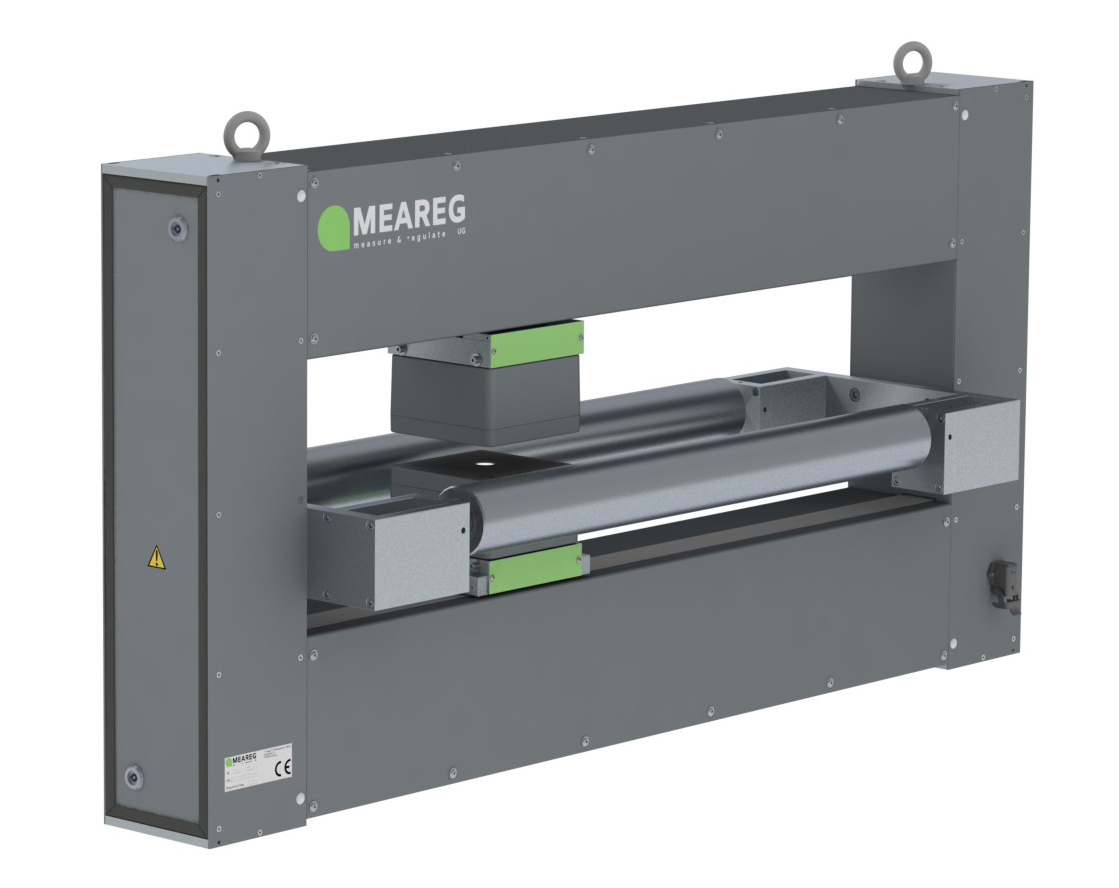

MEAREG Ultrasonic Basis Weight Measurement
The meaSONIC® sensor is based on the ultrasonic absorption measurement method. The built-in processor calculates the basis weight in real time regardless of material, color, position and is suitable for paper, metals, plastic, technical fleece, fabrics and many more.
Another unique meaSONIC® feature is the automatic adjustment to changing environmental conditions, such as temperature, humidity, air pressure and air movement.
The meaSONIC® sensors use ultrasonic wave technology and do not emit any radiation that is used in beta radiometry or high-energy electromagnetic X-ray basis weight measuring scanners, which require radiation shielding integrated into these systems and special radiation training for the operating personnel.
Beta radiometry and x-ray scanner systems can be particularly difficult and expensive to repair and main- tain because of the radioactive materials that produce beta and gamma rays.
Product Features:
- Robust and solid aluminium scanner construction
- Space saving
- Easy one side service access
- Maintenance free sensor construction
- Large Measurement Range: 0 – 1500g/m2
- Automatic calibration and setup. No calibration standard required for different materials
- Extremely accurate on – line measurements: Better than 0.3% of the measured value, resolution 0.02 g/m2 (at full range 1500 g/m2)* **
- MEAREG‘s scanner system meaSCAN® is designed for low maintenance, with only one scheduled maintenance activity recommended per year.
- Extremely low energy consumption (Sensor 24V, 3.5W max.).
- Mains connection: 100-240VAC/50-60Hz
- Easy and convenient to install and operate.
- meaSCAN® sizes are manufactured to meet customer and production line requirements.
